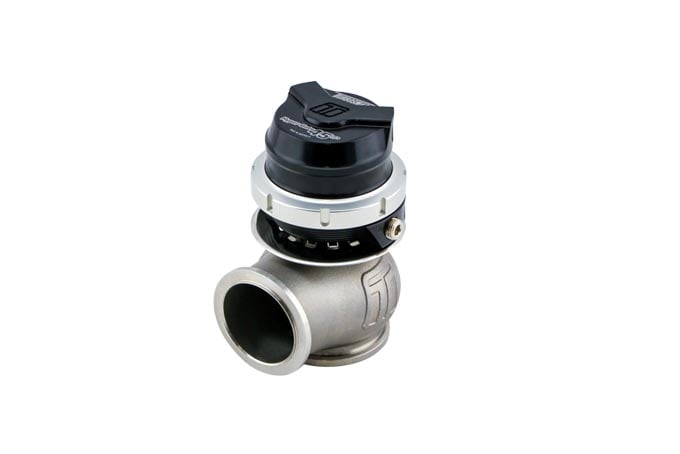

GenV HyperGate45HP 35psi Black

The GenV HyperGate45 HP external wastegate is a motorsport-proven, cost-effective 45mm external wastegate with base spring pressure options of up to 50psi! Add some reference signal manipulation, and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.

Available In
38mm GenV UltraGate38HP - TS-0551-1312 40mm GenV CompGate40HP - TS-0552-1312 45mm GenV Hyperflow45HP - TS-0553-1312

Features HP Actuator - Up to 50psi Base Pressure Class Leading Thermal Performance Class Leading CFD and Bench-Validated Flow Performance Class Leading Fatigue Resistance Optional Actuator Liquid Cooling Rotatable / Clockable Actuator Housing Nitronic 60 Valve Guide and High Temp 347 SS Body 17-7 PH Stainless Steel Springs Strap Type V-band clamps
