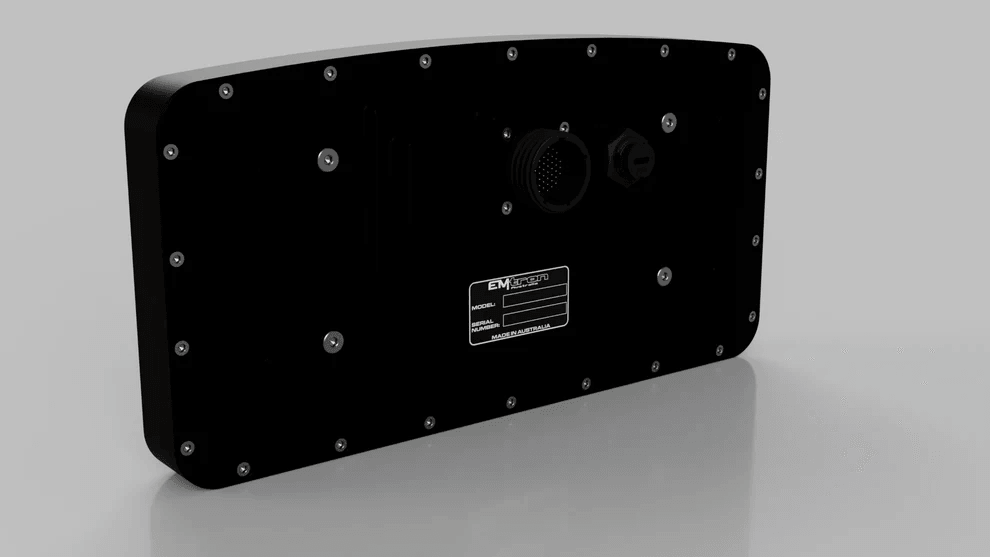

Emtron ED10M

Emtron 10" Motorsport Dash

Main Features

• 10.3 inch TFT Screen – 1920 * 768 Resolution
• Anti Glare / Scratch Resistant Optical Bonded Glass
• 16x High Intensity RGB LEDs
• High Speed Gigabit Ethernet 1000Mbps
• High Speed Logging (Up to 2000Hz)
• eMMC 64GB On-board logging memory
• Real-Time clock for datalogging
• 3-axis Accelerometer and 3-axis Gyroscope
• 4x CAN Bus
• 4x Video Input
• Headphone LR Output
• Mic LR Input
• 8 x Analog External 0.0 -5.0V Inputs (see Pinout)
• Selectable CAN 120 Ohm Termination

Power Supply
▪ Operating voltage: 7.20V to 20.0V DC
▪ Operating current: 800 mA at 14.0V 50% Backlight Duty Cycle(excluding sensor and load
currents)
▪ Reverse battery protection
Operating Temperature
▪ Max operating range: -30 to 85°C (-22 to 230°F)
Physical
▪ Aluminium 6061 grade CNC billet enclosure
▪ Enclosure size 284 X 140mm
▪ Weight: xxx
▪ Connector system: 55 Pin Circular Mil Spec Series III Connector
o Pin diameter: 1 mm
o Current rating: maximum 5.0A per pin at 22AWG
Internal: Specification of the SoM
• NXP® i.MX 8M Plus Quad Core
• 4 x Arm Cortex A-53
• 1 x Arm Cortex-M7 CPU 1.8GHz Core
• Arm Cortex M4 170MHz Microcontroller
• eMMC 32GB + 32GB external = 64GB total storage
• Gigabit Ethernet
• On-Board 6-axis IMU with 3-axis accelerometer and 3-axis gyroscope
